Types of Roofing & Cladding Sheets

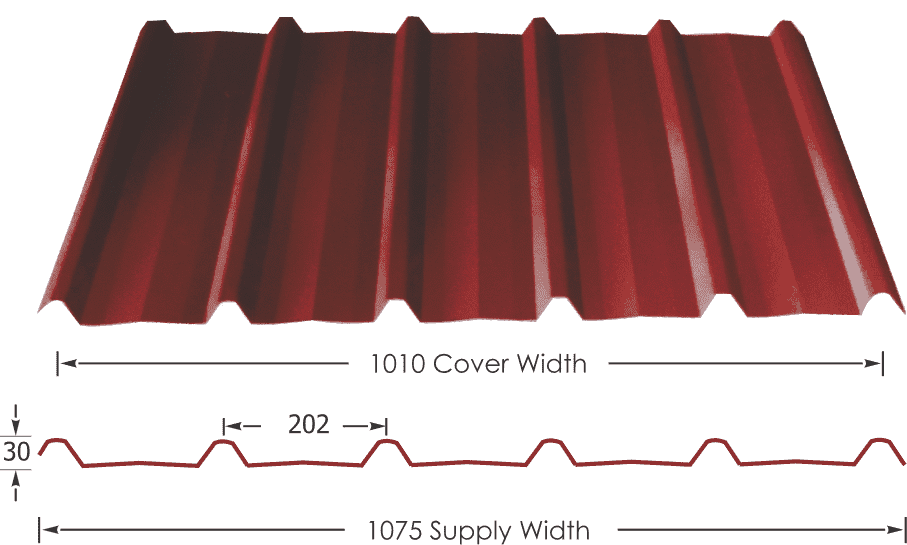

MxRib 1010 is one of the most in demand Roofing and Wall Cladding profile as it serves two most important purposes, first Strength & second Aesthetics and hence becomes architects first choice.

DIMENSIONS
Profile	MxRiB
Cover Width	1010
Crest	30
Pitch	202
Sheet Width	1075

MxCrest 1000 is a profile with muscles. The profile gains its strength through two parallel mini ribs placed between the large crest that makes it efficient and durable. Therefore, it's one of the few profiles that is preferred in heavy rainfall intensity areas.

DIMENSIONS
Profile	MxCrest
Cover Width	1000
Crest	35
Pitch	250
Sheet Width	1095

MxLine 1050 due to its built, superior quality and appearance offers impeccable wall cladding and liner panel solutions for interior and exterior use that caters to both aesthetic and economical requirements. The efficiency is amplified via the 1050mm wide cover width that MxLine comprises. The small ribs in between the crest give additional strength to the profile and an enhanced look.

DIMENSIONS
Profile	MxLine
Cover Width	1050
Crest	18
Pitch	175
Sheet Width	1110
